The Problem Lockheed Ran Into After Designing The L-1011 TriStar

Today’s commercial aircraft market is defined by a handful of manufacturers. Boeing and Airbus dominate the narrowbody and widebody sectors, while regional players such as Embraer, Bombardier, and ATR supply the smaller end of the market. The landscape, however, was once far more diverse. In earlier decades, McDonnell Douglas and Lockheed stood alongside Boeing as major players in shaping the jet age, producing some of the aircraft that would define commercial aviation’s early years.

Over time, McDonnell Douglas eventually merged into Boeing, while Lockheed withdrew from the passenger aircraft sector entirely. For the latter, this was not a case of inexperience in the commercial field. The company had built some of the most respected airliners of their day. By the early 1960s, though, Lockheed Martin had shifted its attention toward military projects, which provided the steady revenue that it struggled to maintain in its commercial aircraft business.

Lockheed’s Uneven Past In Civil Aviation Before Betting Big On The TriStar

Photo: Ian Abbott | Flickr

Lockheed had been active in the passenger aircraft market long before its name became tied to military programs. The company was founded in 1926 and quickly earned a reputation for innovation with the Vega, a single-engine monoplane introduced the following year. The aircraft became a favorite of record-setting pilots such as Amelia Earhart and Wiley Post, and showed that the planemaker could deliver capable designs at a time when commercial aviation was still in its infancy.

In the 1930s, Lockheed expanded its portfolio with the Electra series. The Model 10 Electra, Model 12 Electra Junior, and Model 14 Super Electra all found commercial use. In fact, the latter became the basis for the Hudson bomber, which was produced in large numbers during the Second World War, and the company even licensed the Super Electra for production in Japan. Despite the conflict, the company continued to maintain a presence in the commercial sector.

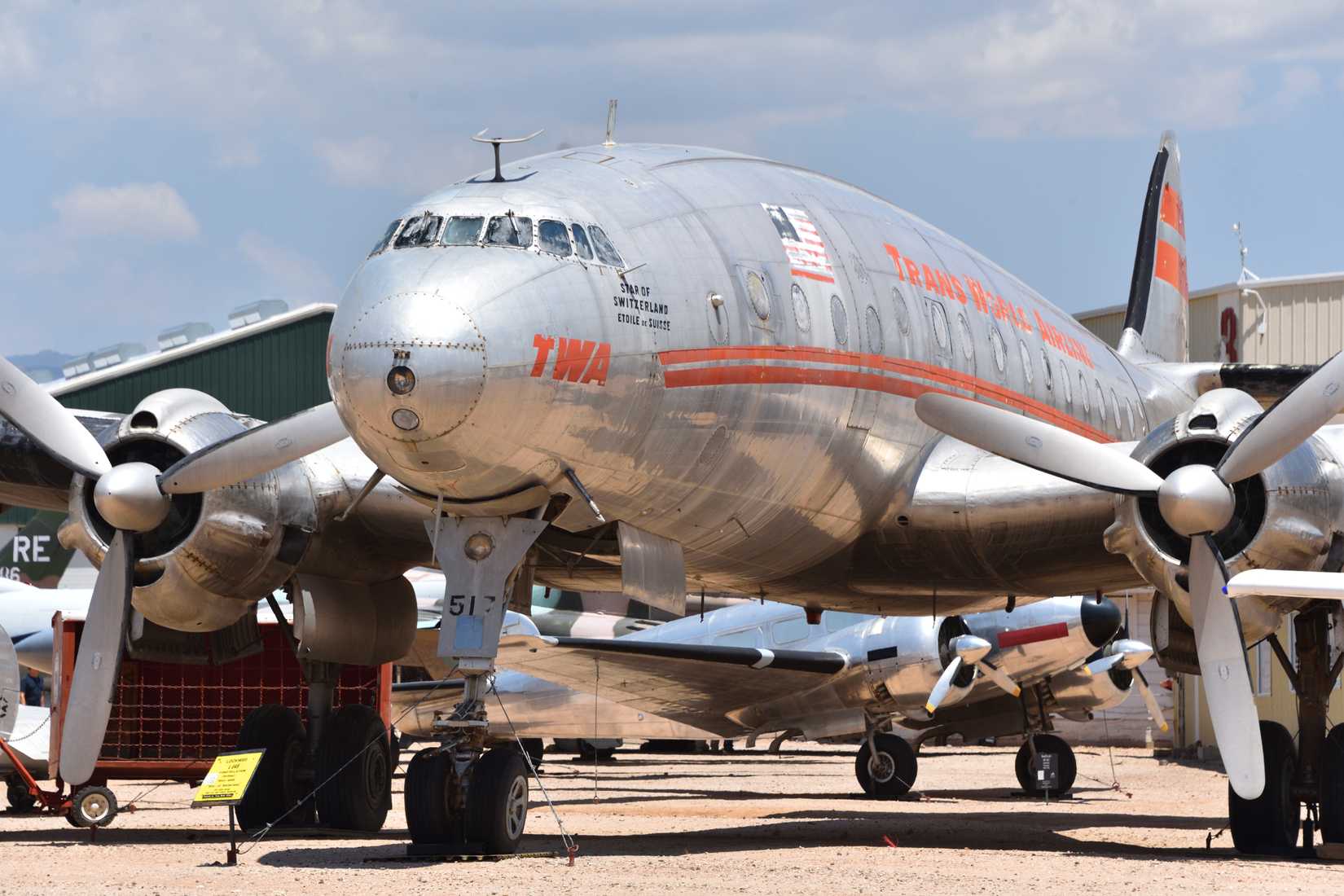

Its collaboration with Trans World Airlines (TWA) led to the development of the L-049 Constellation, which first flew during the conflict and went on to become Lockheed’s most successful airliner to that point. With its triple-tail design, long range, and higher cruising speeds, the Constellation set new standards for passenger comfort and performance and secured the manufacturer’s place as a leading name in civil aviation. However, the company soon faced challenges.

The post-war market quickly became more competitive, and, by the late 1950s, Lockheed introduced the L-188 Electra in an effort to adapt. This offered efficiency and could carry more than 90 passengers, but early structural failures hurt sales. By the early 1960s, Lockheed was again leaning on military programs for financial stability. However, it had not abandoned its ambitions in the commercial field. Those ambitions would soon take shape in the form of a widebody: the L-1011 TriStar.

American Airlines’ Mid-Size Widebody Demand Pushed Lockheed Into Developing The L-1011 TriStar

Photo: Richard Vandervord | Wikimedia Commons

In the late 1960s, American Airlines went to manufacturers with a request for a new widebody jet. The carrier wanted something larger than the Boeing 707 and Douglas DC-8 but smaller and more efficient than the 747, capable of linking its hubs in New York and Dallas to Europe and Latin America. At the time, Boeing was already tied up with the 737 and 747 programs, which left Douglas and Lockheed to respond.

McDonnell Douglas adapted existing technology and launched the DC-10, while Lockheed chose a different path. The company had been absent from the commercial market for several years, so it saw this as its opportunity to return with something modern and competitive. Lockheed’s engineers initially considered a twin-engine layout, but limits on engine performance and transoceanic safety rules made three engines the more practical option.

That decision shaped the design of the L-1011 TriStar. The aircraft was intended not only to meet American’s request but also to appeal to other carriers, such as Eastern, that saw potential in a mid-sized widebody. American ultimately selected the DC-10, but Lockheed secured enough interest to launch its own program.

The TriStar’s Design Stood Out Among 1970s Widebodies

Photo: InsectWorld | Shutterstock

The TriStar was built around a three-engine layout, with two mounted under the wings and one at the tail. The US planemaker routed the tail engine through an S-duct, which gave the aircraft a cleaner profile than the DC-10 and helped reduce cabin noise. This arrangement balanced performance with efficiency and allowed the jet to operate transatlantic flights under the safety rules of the time.

Inside, the cabin was spacious and offered a feel similar to the Boeing 747 in a smaller frame. According to the Flight Path Museum LAX, it featured wide seating, open aisles, and innovations such as a below-deck galley served by elevators (which kept meal service out of sight and freed space on the main deck), polarized window shades, and optional downstairs lounges. Restrooms were located at the front and rear of the aircraft to maximize seating in the middle cabin.

Technology became one of the aircraft’s defining points, and the TriStar introduced an advanced Cat IIIB autoland system that allowed the jet to land in near-zero visibility, something no other widebody could match at the time. It also featured direct lift control, with spoilers used to steady approaches and improve landing precision. The automatic flight control system integrated speed, navigation, and stability functions, and gave pilots a level of assistance that was years ahead of the industry.

In terms of cabin capacity, it varied depending on configuration. In its standard form, according to the Modern Airliners, the L-1011-1 seated about 256 passengers in a mixed-class layout. It cruised at around 520 knots (963 km/h) and could fly up to 4,250NM (7,871 km). Later variants increased that range, but even the first version stood out for its quiet cabin, passenger comfort, and advanced systems, and made it one of the most ambitious airliners of its time.

Engine Woes & Certification Problems Hurt The Aircraft’s Market Prospects

Photo: Airlinephoto | Shutterstock

Beyond the cabin and flight deck technology, Lockheed also placed a major bet on its choice of engine. The TriStar was launched with Rolls-Royce’s RB211, the first three-spool turbofan to power a commercial aircraft. It was designed to deliver more thrust while running quieter and more efficiently than the two-spool engines used by competitors. On paper, it gave TriStar a clear technological edge, but, in practice, the RB211 became the program’s biggest challenge.

The carbon-fiber fan blades developed for the RB211 failed durability tests, which forced Rolls-Royce back to heavier titanium blades. That change increased the engine’s weight, undercut fuel burn advantages, and strained the design’s performance margins. At the same time, Rolls-Royce struggled to keep costs under control. The program ran over budget and behind schedule, and in 1971, the company collapsed into bankruptcy.

Lockheed explored alternatives, including switching to General Electric’s CF6, but by then the TriStar had been designed around the RB211. Redesigning the airframe would have added years and further costs, making it unviable. The UK government ultimately nationalized Rolls-Royce to keep engine production alive, while, in the US, Lockheed secured $250 million in loan guarantees after a narrow vote in Congress. These measures kept the TriStar alive, but at the expense of time.

The aircraft did not receive certification until April 1972, and by that point, the rival DC-10 was already in airline service. McDonnell Douglas had the advantage of an earlier entry, more engine options, and longer-range variants that quickly appealed to carriers with intercontinental ambitions. TriStar’s dependence on the RB211 delayed its debut, limited the range of its early models, and left it struggling to catch a competitor that had already secured a strong position in the market.

Which Carriers Used The L-1011?

Photo: Airlinephoto | Shutterstock

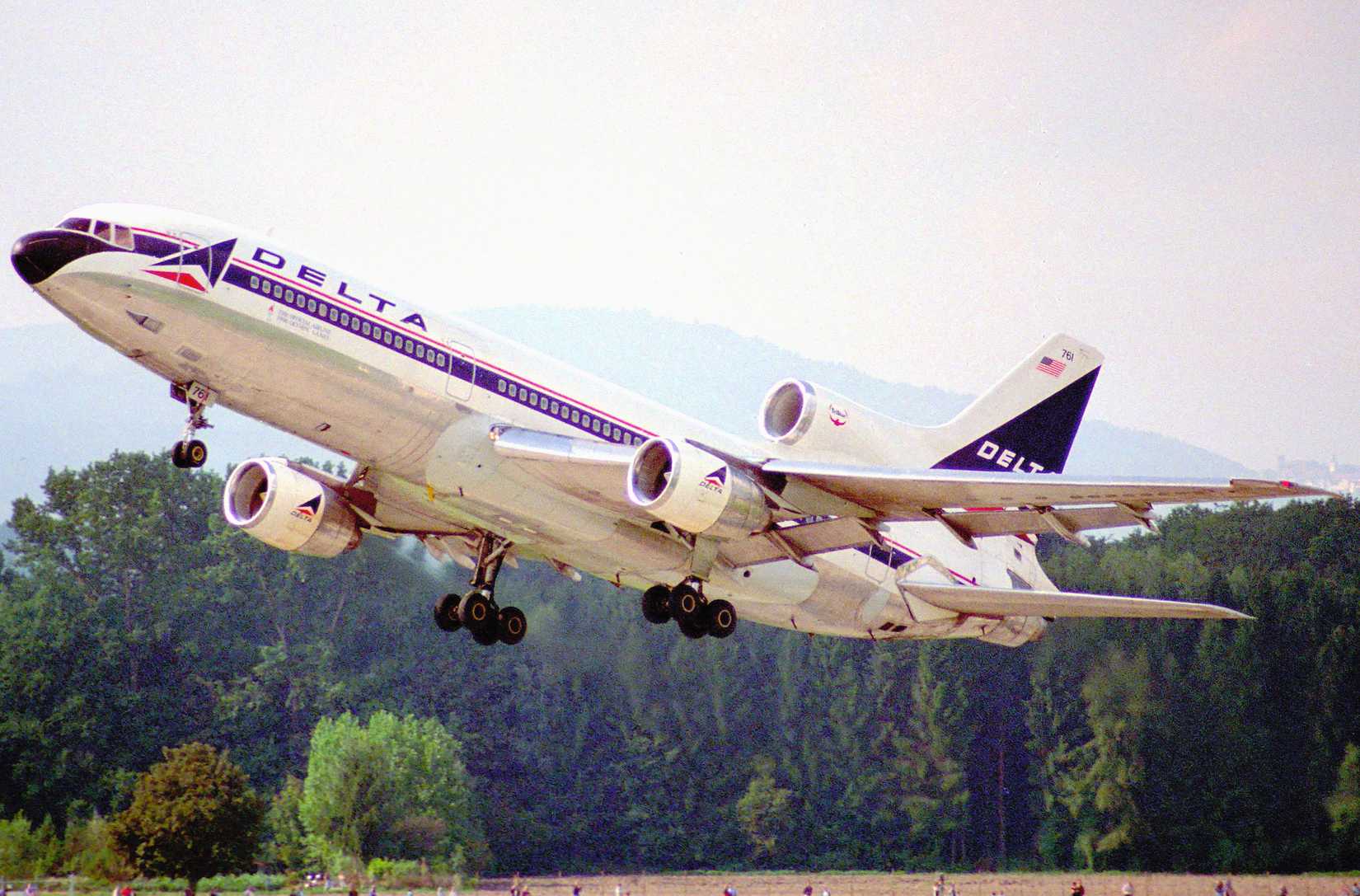

Because of its delayed entry, TriStar never achieved the same commercial success as the DC-10. According to Airline History, McDonnell Douglas delivered around 446 DC-10s, while Lockheed delivered just 250 TriStars. Even so, the aircraft still attracted interest from several carriers across the world. Delta Air Lines was the largest operator and eventually operated 70 aircraft across five variants of the type: the L-1011-1, -100, -200, -250, and -500.

The Atlanta-based carrier valued the aircraft’s efficiency and technology and adopted features such as the new advanced automated navigation system, which integrated moving-map displays with the autopilot and autoland functions. As noted by the Delta Flight Museum, in 1973, Joseph A. Cooper, the airline’s Senior Vice President of Marketing, said:

“The TriStar will be of tremendous assistance in the current energy crisis since it is replacing older and less economical four-engine equipment. The TriStar, at average cruise speeds, actually consumes less fuel than several of the older jets…Their 250 seat passenger carrying capability will also be of great assistance in the face of curtailed schedules due to fuel shortage.”

TWA also praised the jet as one of the safest planes in service, while Eastern was a major early operator. Pan Am, United Airlines, and several charter carriers, including American Trans Air, also flew the type for shorter periods. Elsewhere, airlines such as Air Canada and Air Transat relied on TriStar for medium and long-haul routes. The aircraft also found customers across Europe, Asia, and the Middle East.

British Airways, Air France, Aer Lingus, and Air India all operated the type, alongside Gulf Air, TAAG Angola, and Air Lanka. Cathay Pacific also became a prominent TriStar user when it acquired 21 aircraft from Eastern in 1989 following the US airline’s bankruptcy. Beyond commercial service, it also attracted military interest in Algeria, Jordan, Saudi Arabia, and the UK, where the type was used for passenger and transport missions.

The TriStar Was A Technical Marvel But Never Achieved True Commercial Success

Photo: Aero Icarus | Flickr

The L-1011 TriStar was one of the most advanced commercial jets of its generation. Lockheed delivered a design that was technologically ambitious and focused on both performance and passenger comfort. From its quiet cabin to its automated landing system, the aircraft represented what widebody travel could become in the 1970s. However, ambition alone could not carry the program.

The RB211 engine crisis meant delays in certification, and the TriStar entered service later than its rival despite its advanced design. By the time it entered service, its competitor had already established a foothold, which left TriStar to fight for market share from behind.

Sales never matched Lockheed’s expectations, and the TriStar closed production at just 250 units. It ultimately became the company’s last commercial airliner program. Afterward, the company concentrated on its military programs, where it found long-term success with aircraft including the C-130 Hercules, F-117 Nighthawk, and later the F-35 Lightning II. Today, it remains a key player in the defense market.
