How The C-17 Globemaster Stacks Up Against The C-5 Galaxy In 2025

Few names evoke the scale of US cargo power projection more than the LockheedC-5 Galaxy and BoeingC-17 Globemaster III. These two behemoths have carried the weight of US global logistics for decades, delivering tanks, helicopters, humanitarian aid, and other essential goods across continents.

In 2025, they are still mainstays of strategic airlift, but they do so in markedly different ways. One prioritizes sheer cargo volume and range; the other prioritizes flexibility, agility, and access to austere fields. In our guide exploration, we’ll compare how the Globemaster and Galaxy stack up today, with numbers, stories, and surprising facts, to see what each brings to the sky.

Origins & Design Philosophy

Credit: Wikimedia Commons

The C-5 Galaxy was developed in the late 1960s amid Cold War tensions. Lockheed’s design addressed the United States Air Force’s requirement for a jet that could haul outsized cargo across intercontinental distances, which was of utmost importance during the Vietnam War. The first operational aircraft arrived in 1970, and the Galaxy has become, and remains, one of the largest military aircraft ever flown. Over time, it’s been modernized (notably into the C-5M Super Galaxy) to keep pace with evolving logistics demands.

According to the Travis AFB fact sheet, a modernized C-5 can “operate on runways 6,000 feet long,” has “five sets of landing gear totaling 28 wheels,” and features nose and tail doors for full cargo access.

The C-17 Globemaster III, on the other hand, emerged in the 1980s and early 1990s as a response to more varied operational demands. McDonnell Douglas (later Boeing) envisioned a jet that could straddle the line between strategic and tactical lift. The C-17 first flew in 1991 and entered service in 1995. Its design emphasizes short-field performance, reversing capability, and modular cargo handling. The USAF fact sheet notes the C-17 can operate from runways as short as 3,500 ft (1,064 m), even in austere conditions.

While the Galaxy was built to handle the biggest loads, the Globemaster was built to go where the Galaxy couldn’t.

Technical & Performance Comparison

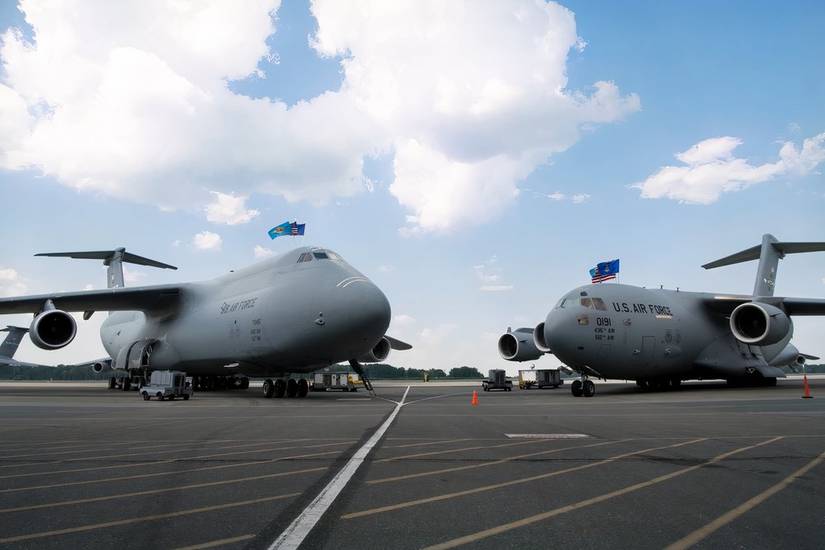

Credit: US Air Force | Wikimedia Commons

From a distance, the two aircraft might look similar: both have four engines, a T-tail, and standard grey USAF livery. However, the size differs, and apart from the size, there are other notable differences. To compare these aircraft objectively, here’s a side-by-side table of their key specs.

C-17 Globemaster III vs C-5 Galaxy (C-5M) – Technical Comparison

Source: USAF

That table illustrates the stark contrast: the Galaxy offers unmatched payload and range, while the Globemaster excels in the realms of access, agility, and rapid forward operations.

Operational Tales & Surprising Facts

Credit: US Air Force

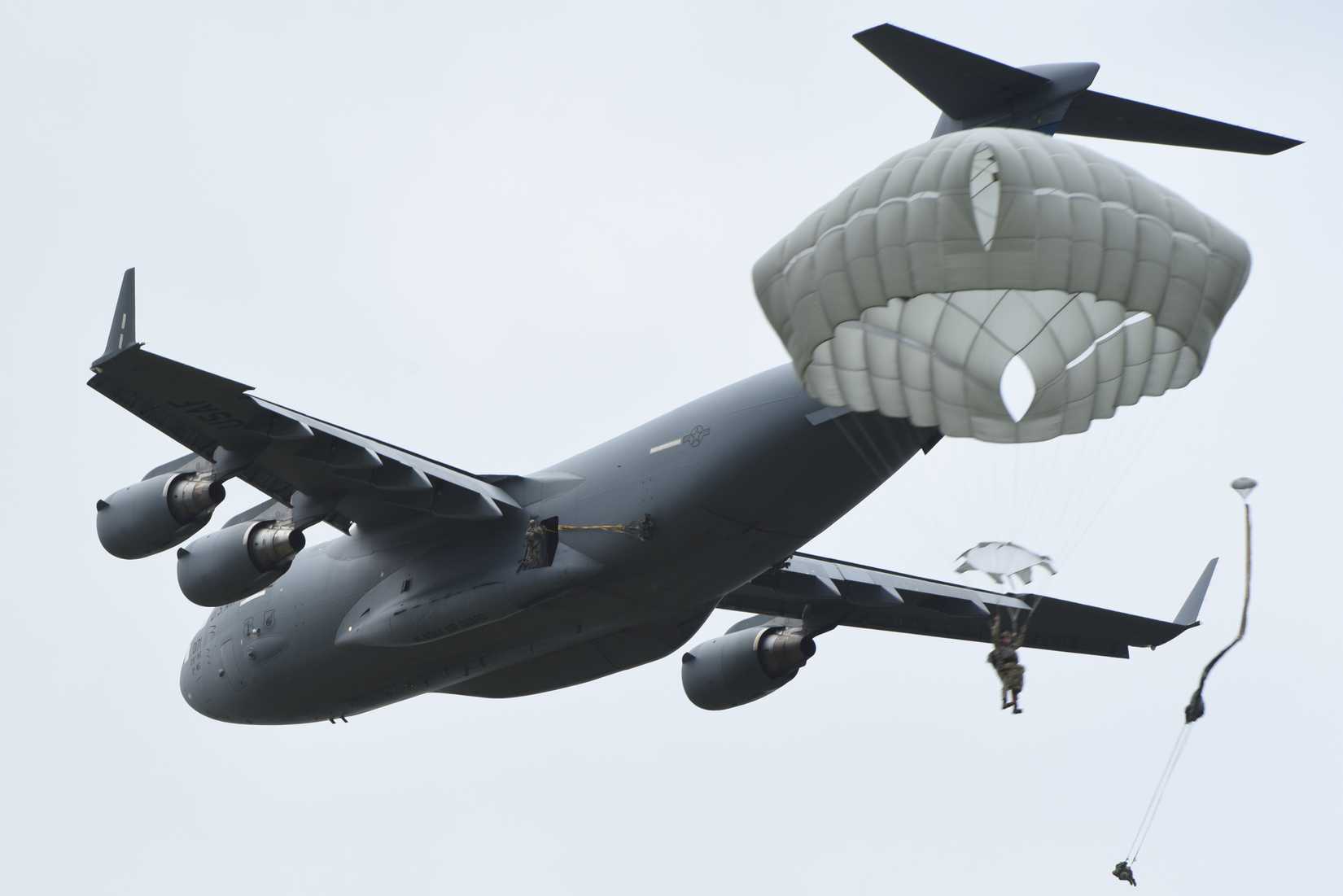

Real missions, real impact: In combat zones like Afghanistan and Iraq, C-17s were often the frontline workhorses. They delivered supplies to remote airstrips, executed combat offloads without stopping, and even reversed out using their thrust reversers under tight constraints. A key demonstration: in 2010, during joint Army-Air Force airdrop exercises, a C-17 aircrew dropped 2,349 jumpers over several days without needing intermediate stops, as described by Captain Fischer from JB Charleston.

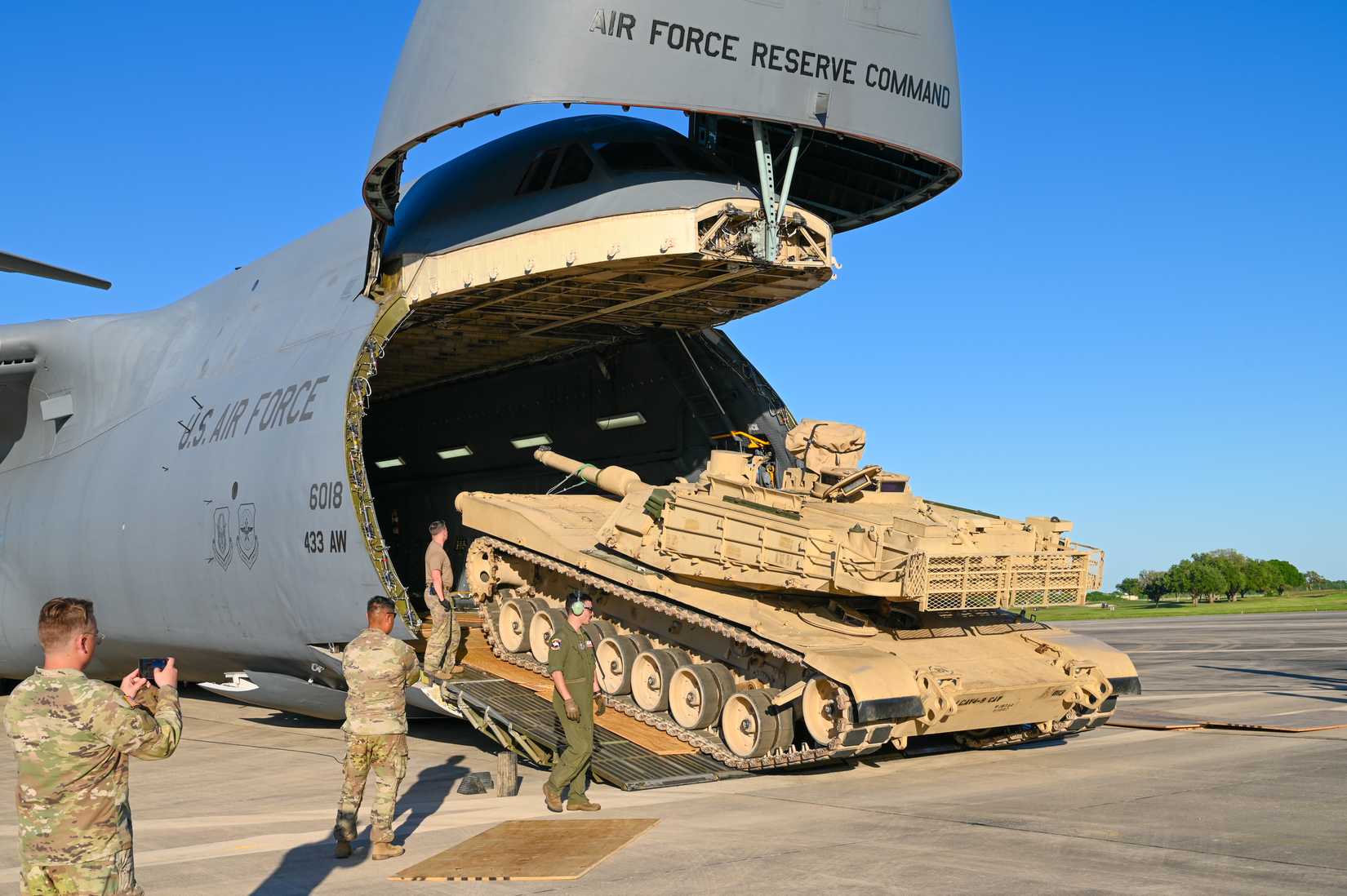

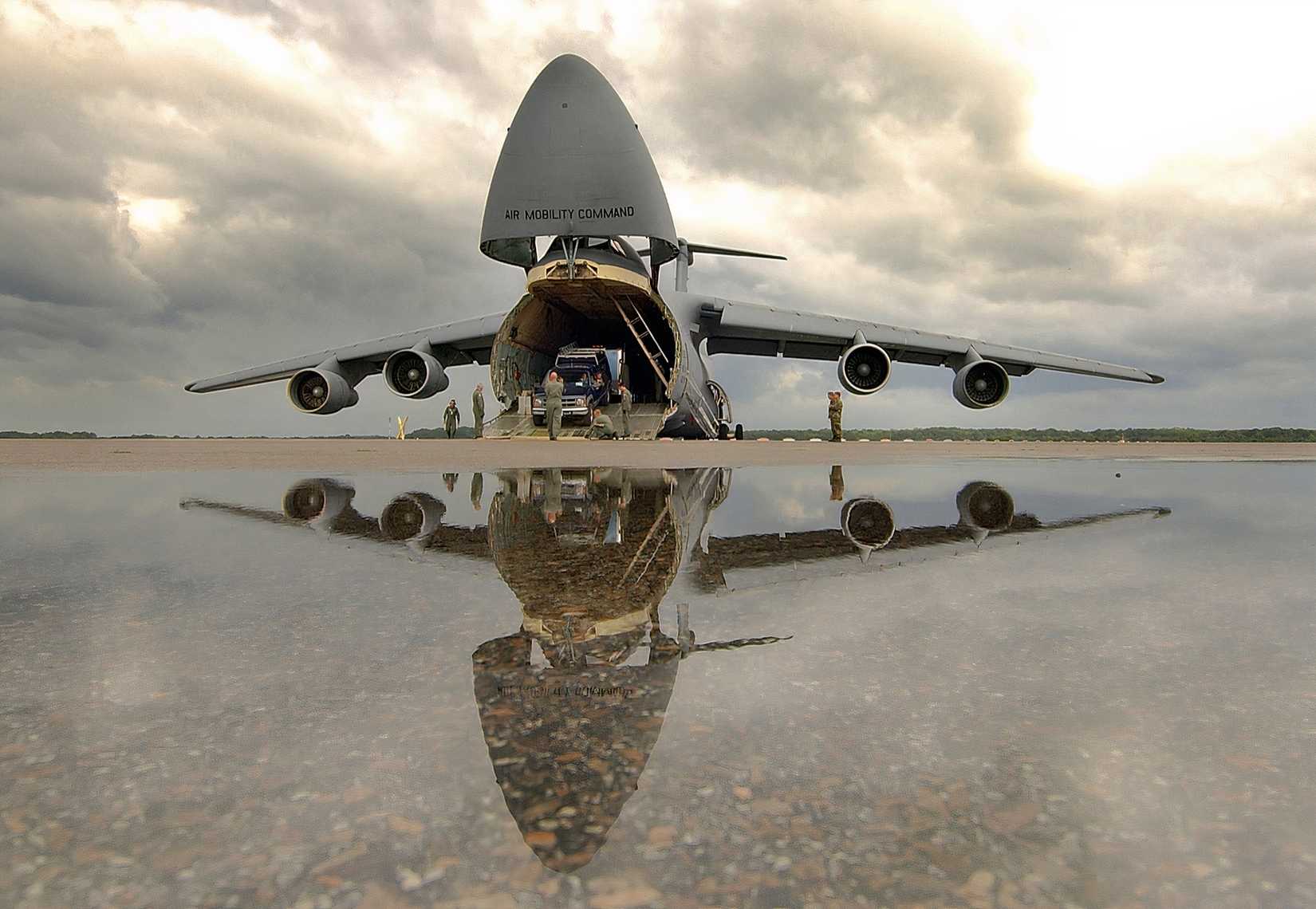

Across the globe, the C-5 Galaxy takes on tasks no other aircraft can. The ability to load via the nose and tail simultaneously lets crews roll massive machinery in and out quickly. The C-5M modernization created a system that monitors thousands of diagnostic points (7,000 in a C-5M), improving maintenance cycles.

Fun Facts & Records:

• The C-17 Globemaster III holds a long list of records. As Simple Flying notes in its “5 Fun Facts” feature, it reached its 4 millionth flight hour by early 2021 – among the fastest military transports to do so.
• The C-17 can carry an M1 Abrams tank (about 70 tons), provided weight limits allow. It can also airdrop 60,000 lb in one go or stagger loads totaling 110,000 lb.
• In tests and record attempts, the C-5M Super Galaxy set over 86 world aeronautical records after modernization.
• The Galaxy’s kneeling gear allows the aircraft to lower itself on the ground, making it easier to roll vehicles on/off ramps.
• The C-5’s fuel system includes 12 internal wing tanks totaling over 51,150 gallons (≈ 194,370 liters) — enough to fill 6½ standard railroad tank cars.
• The Globemaster is occasionally used to transport parts of “Air Force One” sets, including the Presidential Limo and Marine One, under the Presidential call sign.

Risks & rare incidents: Large transport aircraft are rarely in the news for accidents, but one stands out: in July 2010, a C-17 crashed near Elmendorf AFB, Alaska, during a practice display. All four crew members lost their lives after a low-altitude stall caused by a sharp turn. It remains the only fatal C-17 crash to date. The C-5 Galaxy record is also impressive, with only two fatal crashes during its operational history. The most notorious crash involving the G-5 Galaxy is known as the Tân Sơn Nhứt C-5 accident, which happened during the Operation Babylift in 1975 while evacuating Vietnamese children from the war zone. 138 people out of 314, including children, were killed in this accident. Another C-5 crashed near Ramstein Air Force base in Germany in 1990, killing 13 out of 17 people on board.

Economics, Sustainment & The Modernization Game

Credit: US Air Force

Operating these giants is a balancing act of cost, logistics, and mission necessity. The C-17, despite being expensive to build at around $340 million apiece, has relatively low operating costs and high mission-capable rates (often above 85%). The aircraft was also built with maintainability in mind: according to the USAF, it targets only 20 maintenance man-hours per flight hour and achieves mission completion rates of nearly 92%.

The C-5M modernization, via the AMP (Avionics Modernization Program) and RERP (Reliability Enhancement & Re-engining Program), converted 52 legacy C-5s into C-5Ms, enhancing performance, diagnostics, and structural life. Lockheed Martin notes these upgrades significantly reduced takeoff roll and improved climb rates.

Still, the Galaxy’s sheer size makes it more maintenance-intensive. Ground infrastructure, handling gear, and specialized hangars all incur cost. The C-17’s smaller footprint and modular systems help make it more cost-effective across a wide range of missions.

In its fleet structure, the US Air Force operates over 222 C-17s globally, while only 52 C-5Ms remain in active service. That disparity provides planners with more flexibility, redundancy, and a scheduling buffer in the Globemaster fleet than in the limited number of heavy-lift Galaxies.

Which One “Wins” In Practical Narrative

Credit: US Air Force

Imagine you’re a logistics planner confronted with a query: move a fully assembled generator, weighing 130,000 lb, from Ohio to a forward base in Africa. You dispatch a C-5M. The Galaxy roars off the runway, flies nonstop across oceans, and lands at a prepared airfield where local infrastructure is primed to unload the load. It’s the only aircraft capable of delivering such dimensions and mass intact.

Now, picture a different scenario a year later: a flood devastates a remote mountain region with one short, damaged airstrip left as the only access. You send in a C-17. It lands at 3,500 ft (1 km) on rough pavement, offloading tents, medical supplies, vehicles, and people. It backs out, reloads, and returns the next day. That same mission would be impossible for a C-5.

In that narrative, the Galaxy “wins” when raw cargo and strategic distance dominate. The Globemaster “wins” when constraints bite, like terrain, infrastructure, and time.

But real missions seldom fall neatly into one or the other. In many campaigns, both aircraft fly in tandem. The C-17s lead, pushing payloads forward to remote zones; once the runways are reinforced, the C-5s surge in with heavier cargo. They form a logistical symbiosis: reach plus heft.

The Road Ahead

Credit: Wikimedia Commons

In 2025, both aircraft will remain relevant, but change is on the horizon. The C-5M is expected to serve reliably into the 2040s, while the C-17, although production ended in 2015, continues through sustainment contracts and parts support, with discussions ongoing about potentially restarting production.

Future programs, such as the US Air Force’s Next Generation Airlift (NGAL) initiative, envision a new platform that combines the Galaxy’s load capacity with the Globemaster’s access capabilities.

Until such transitions arrive, the C-5 and C-17 remain unique in their respective niches. In 2025, the Galaxy still defines what volume and mass are possible in the sky. The Globemaster defines where, how fast, and how flexibly you can move that payload. Together, they continue to represent the US global air mobility.
